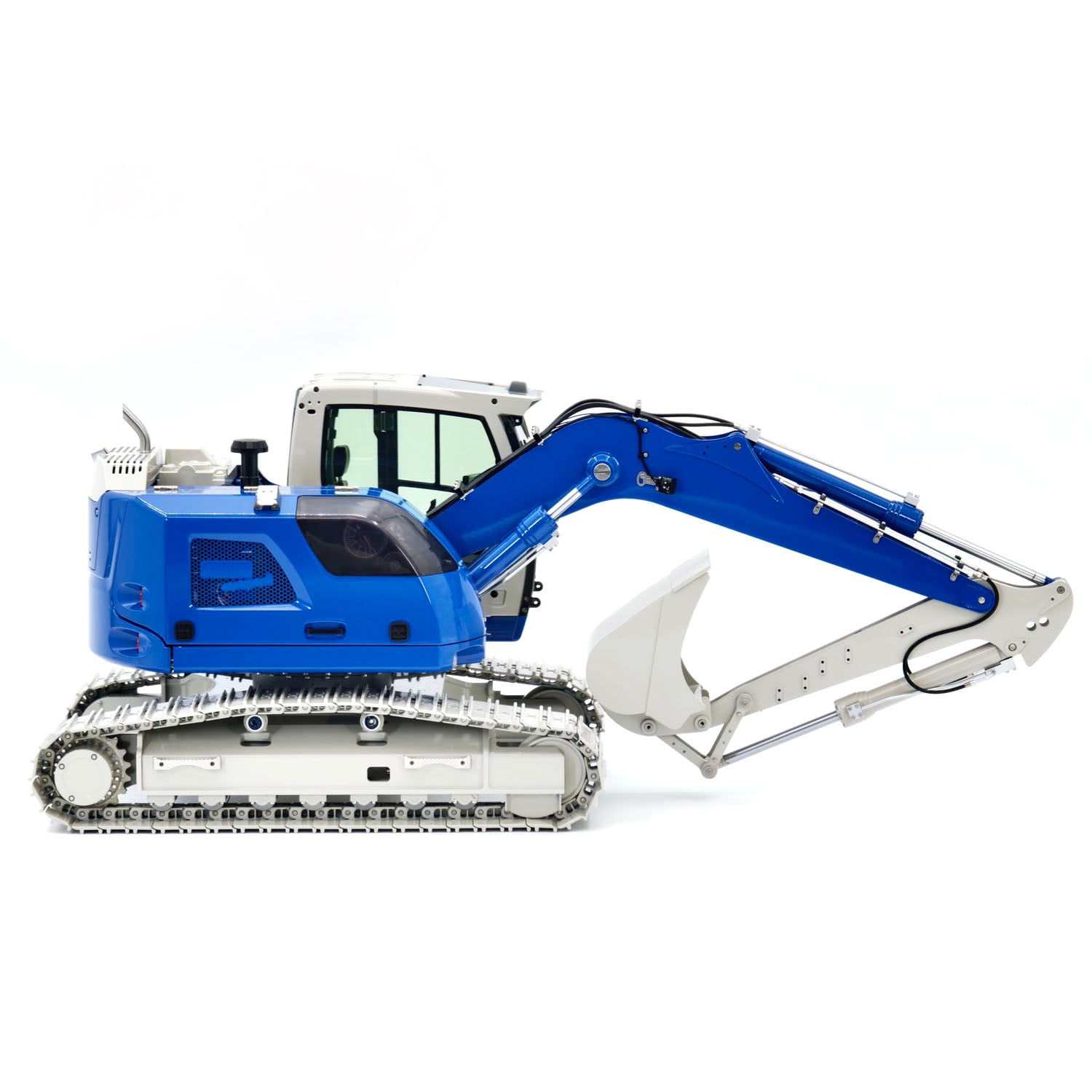

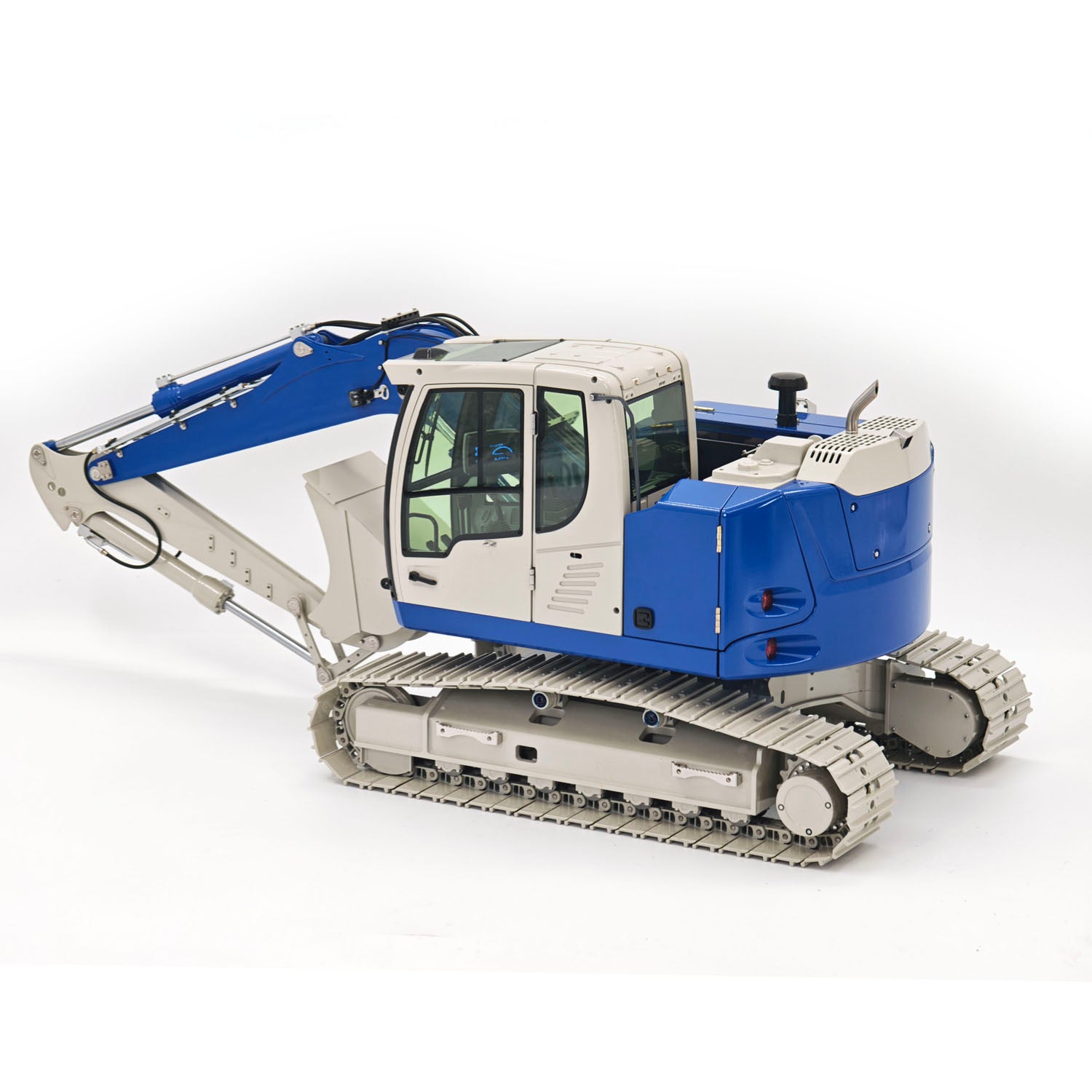

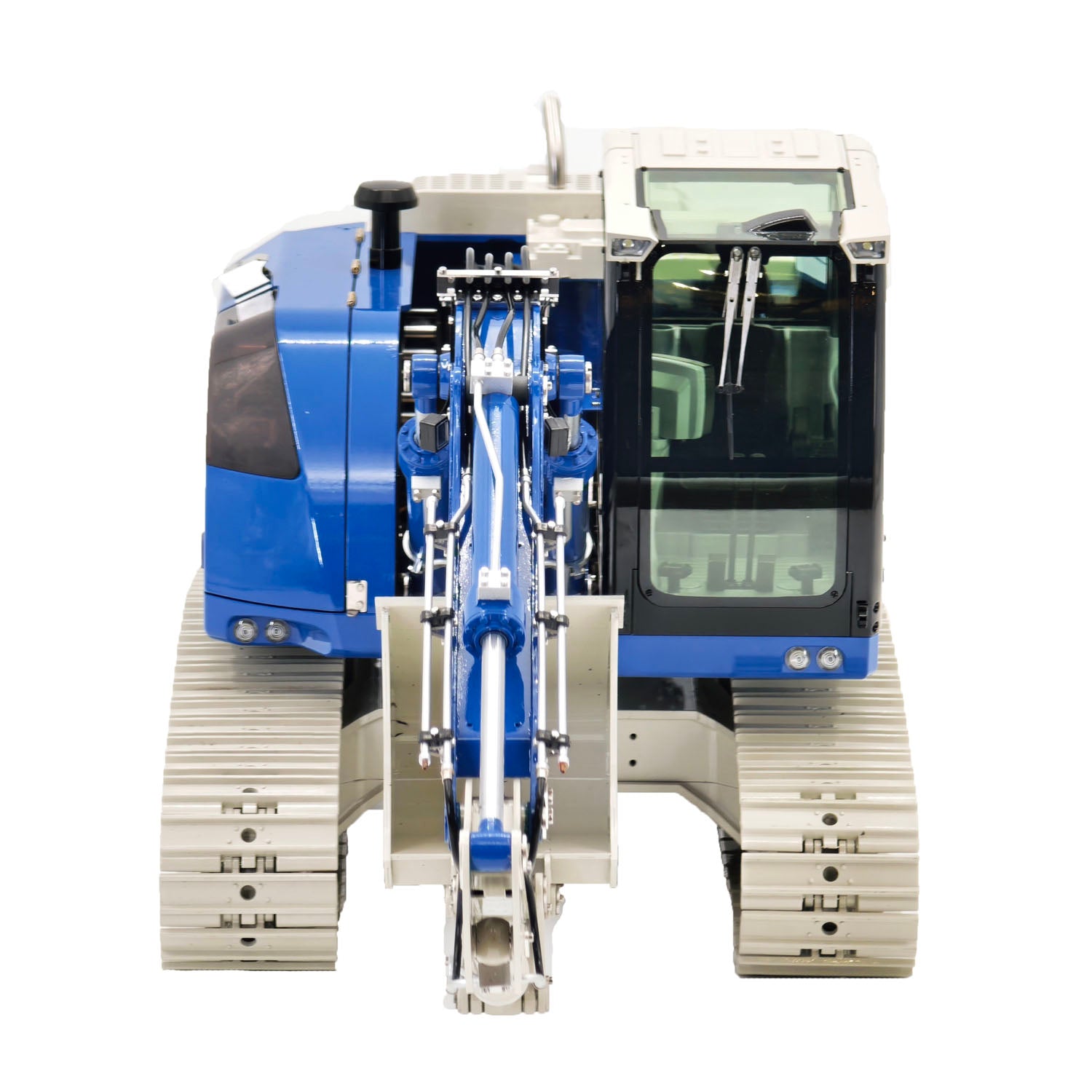

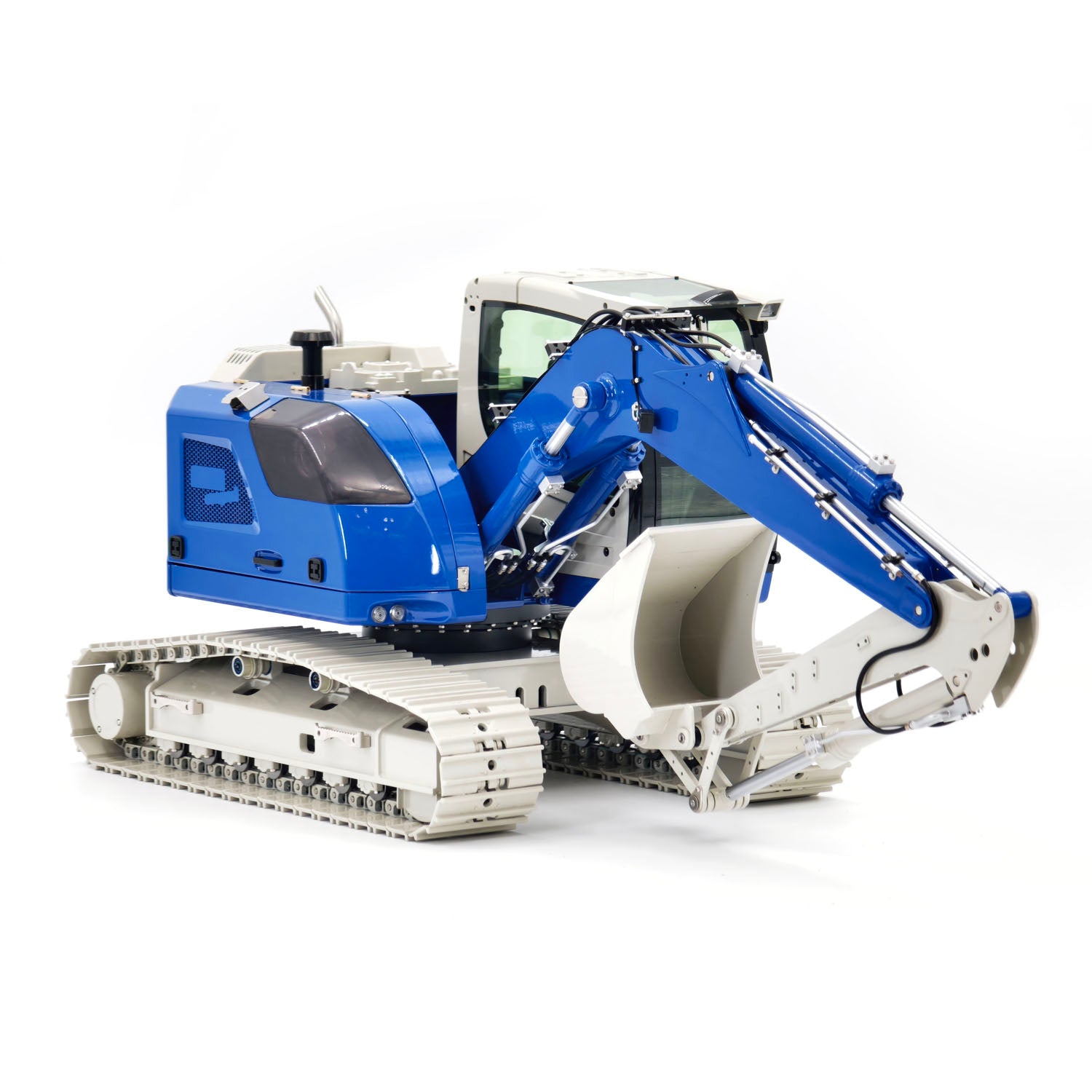

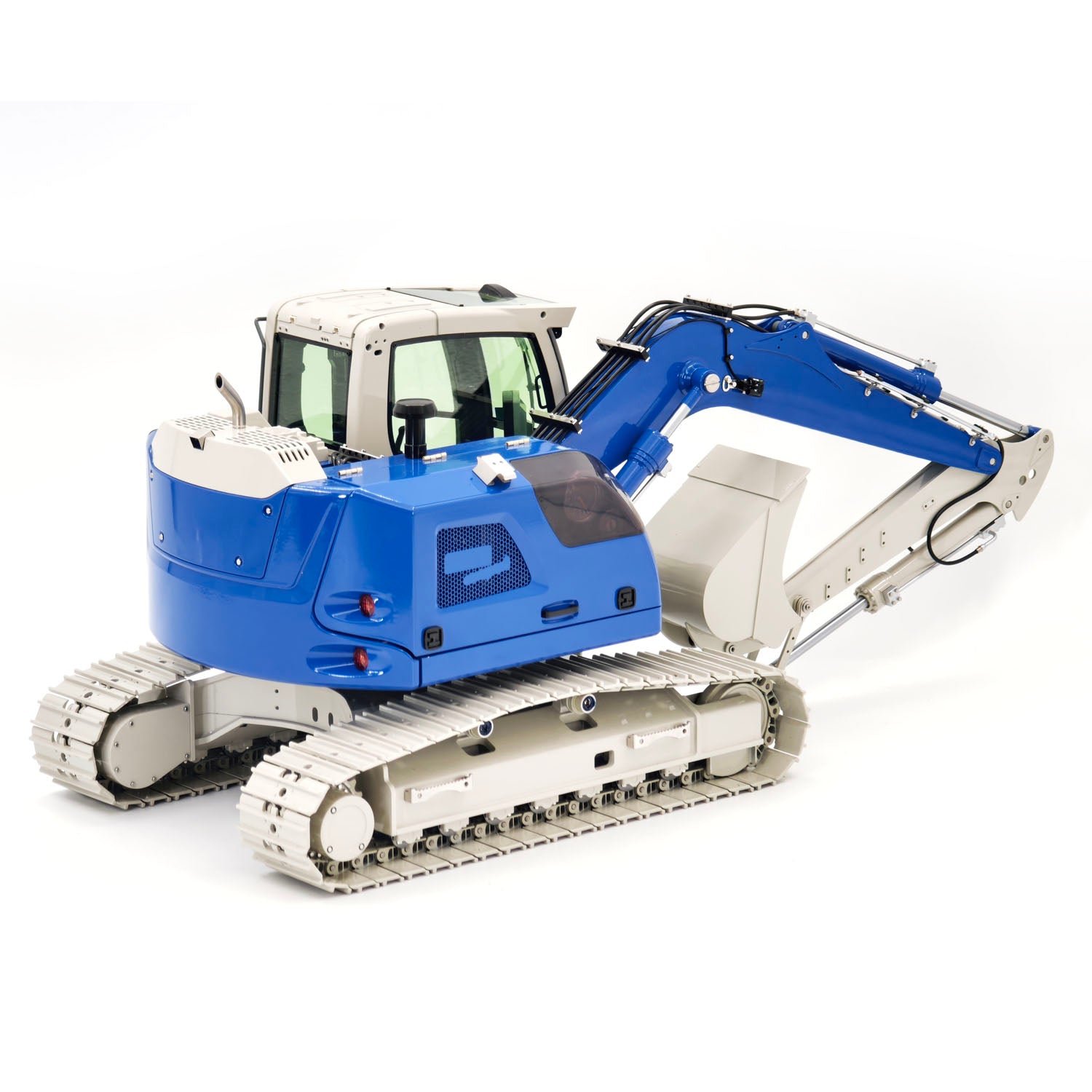

#1/14 Metal 2Arms RC Hydraulic Tracked Excavator JDM-208 R920 Radio Control Digger Engineering Vehicle Sound System Battery
#Specification:
Manufacturer: JDMODEL
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: Metal, Plastic (Most of the parts are made of metal, with the exception of the cabin glass and some decorative parts made of plastic)
Product Dimensions: Approx. 504.4 ¡Á 213 ¡Á 221 mm / 19.9 ¡Á 8.4 ¡Á 8.7 in
Product Net Weight: Approx. 7.5 kg / 16.5 lbs
ID: JDM-208V-R920-Hexcavator-3CH-SD-RTR-BUW

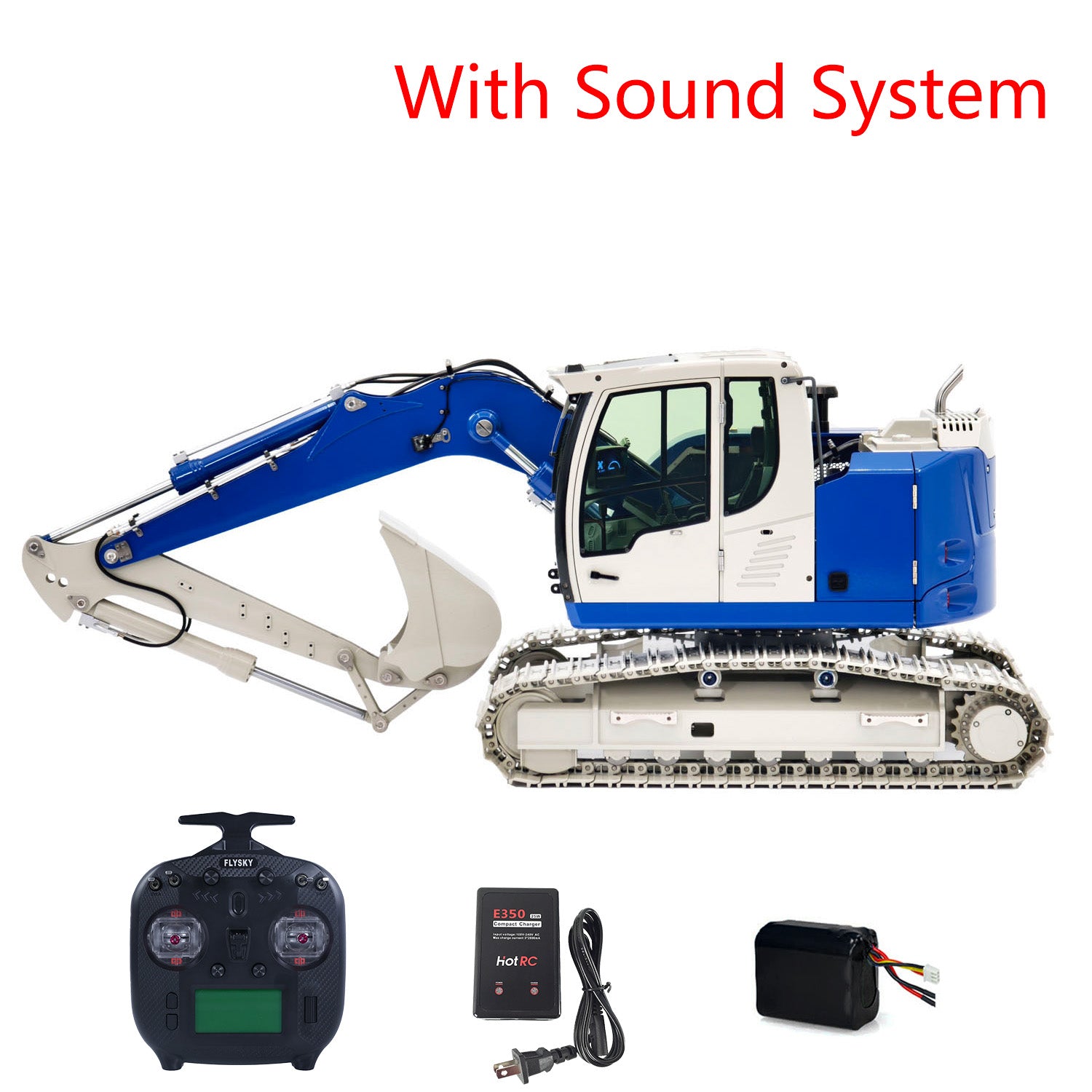

#The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Light System
Sound System
Hydraulic System with 3-ways Reversing Valve
Integrated Pump and Oil Tank
FLYSKY ST8 Remote Controller and Receiver
Vehicle Battery
Charger
#The Package Does Not Include:
Quick Release Coupler
Hydraulic Oil
#Static Parameters
- Body width (mm): 194
- Ground clearance at upper edge of tracks (mm): 69.3
- Ground clearance at top of body (excluding exhaust pipe) (mm): 184.6
- Ground clearance at top of cab (excluding protective net) (mm): 221.3
- Ground clearance of counterweight (mm): 80.9
- Wheelbase (mm): 239.1
- Standard track width (mm): 50
- Distance between tracks (mm): 163
- Maximum width of the chassis (mm): 213
#Dynamic Parameters
- Rotation angle (¡ã): 360 (infinite rotation)
- Torque of worktable rotation motor (kg): 25
- Rotation speed of the worktable (r/min): 9.5
- Single cylinder thrust (kg): 15
- Maximum speed of drive wheels (r/min): 30
- Drive wheel reduction ratio: 1/256
- Maximum pressure of hydraulic system (MPa): 4
- Rated pressure of hydraulic system (MPa): 2.5
#Features:
1. CNC Stainless Steel Body With Light And Sound System
This 1:14 scale metal hydraulic tracked excavator features a body primarily constructed from CNC-processed stainless steel sheet metal, with selected detail parts made from molded ABS. The integrated CNC chassis further enhances overall structural rigidity, while the brushless travel motor delivers smooth and stable power output. The built-in light and sound system adds to the realistic operating experience.
2. Precision Proportional Hydraulic System With 3-Way Control Valve
Equipped with a newly developed 1:14 scale proportional hydraulic directional valve for precise and smooth movement control. The integrated hydraulic pump station and 3-way control valve combine the oil tank, pressure regulator, pressure gauge, oil filling port, balance valve, drain port, and oil level indicator into a compact assembly, making maintenance easier and helping improve hydraulic system stability.
3. Optimized Cylinders And Hydraulic Swivel Design
The cylinders feature an optimized side structure inspired by the sealing principles of construction equipment cylinders for smooth operation. The hydraulic swivel adopts a star-shaped sealing structure with a side-mounted layout, supporting continuous rotation while improving sealing performance and helping reduce the risk of hydraulic oil leakage.
4. Versatile Upgrade And Expansion Options
Supports various upgrade options, including GPS, rubber track pads, and multiple working attachments such as a grapple and ripper. The track links feature pre-drilled mounting holes for easy installation of optional rubber track pads, helping improve traction and reduce operating noise.
5. Cooling System And Operating Experience
The excavator is equipped with an independent cooling fan to help manage operating temperature during use. The cooling system provides additional support for stable operation, making the model suitable for extended operating sessions.
#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
